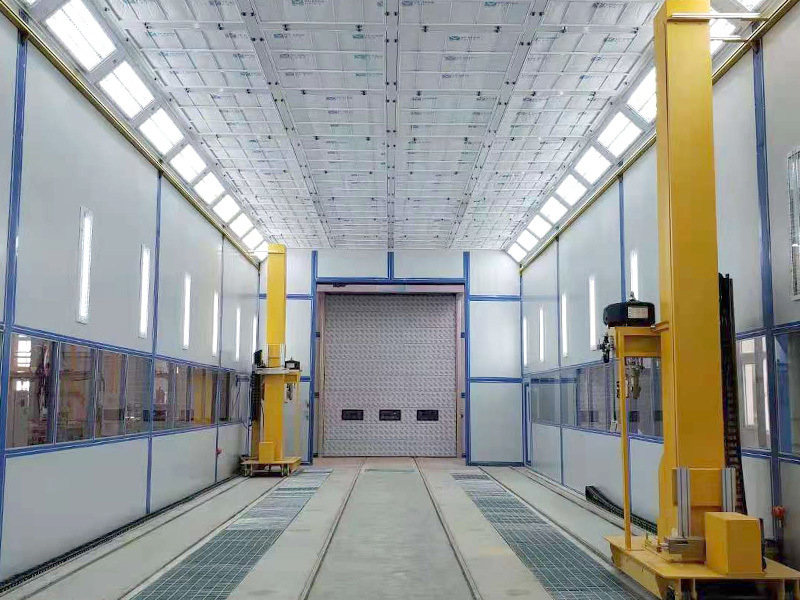

Name: Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths
Brand: CoatTech Intelligent Equipment(Guangzhou) CO.,LTD
SKU: CT-PQ-II-II-III
Price: 50,500.00 USD
Availability: InStock

Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths

Basisinformatie

Plaats van herkomst:	CHINA
Merknaam:	CoatTech
Certificering:	ISO9001、CE
Modelnummer:	CT-PQ-II-II-III

Min. bestelaantal:	1 stc
Prijs:	1000-100000 USD
Verpakking Details:	Met gewone film en doos
Levertijd:	30 dagen na de aanbetaling
Betalingscondities:	T/t
Levering vermogen:	20set/maand

Contact nu

Functie:

Auto -onderdelen en meubels

Wallboard:

50 mm EPS -paneel, 0,6 staal

Featudirect Drivere:

Roest / corrosieremmer

Stroomvoorziening:

380V/220V/50Hz/60Hz

Uitlaatsysteem:

Centrifugal -fans en turbo -fans

Verwarmingssysteem:

Olie-stieked, gasgestookte en elektrisch

Beoogd gebruik:

Automotive en compacte industriële componenten

Besturingssysteem:

Standaard elektrische relais en push-knop interfaces

Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths

Big Size Spray Booth System: Key Features‌

‌Multi-Fuel & Dual-Voltage‌
- Compatible with diesel, gas, steam, or electricity
- Supports 380V/50Hz/3Ph or custom voltage for global adaptability
‌Precision Automation‌
- PLC touchscreen control for temperature, airflow, and curing cycle optimization
‌Durable Construction‌
- Reinforced steel frame with optional insulation (EPS, rock wool, PU, metal)
‌Customizable Layouts‌
- Fold/rolling doors for oversized components
- High-capacity 25,000 m³/h airflow system
‌Eco-Conscious Performance‌
- Multi-stage filtration (ceiling, fiberglass, activated carbon)
- Ensures VOC containment and environmental compliance

‌Summary‌: This industrial-grade spray booth combines energy flexibility, smart automation, and robust design to deliver efficient, compliant painting solutions for large-scale applications.

Specification

Attribute	Description	Attribute	Description
Product Name	Large Industrial Spray Coating Booth	Power Configuration	380V / 50Hz / 3 Phase (Optional Alternatives)
Fuel Compatibility	Supports Diesel, Gas, Steam, or Electric Heating	Door Options	Folding or Automated Rolling Access Door
Drive System	Local or Imported Motor Choices	Control Interface	Manual Switch Panel or PLC Touch Controller
Panel Insulation	EPS / PU Foam / Rock Wool / Metal Panel Options	Finish Color	White or Custom-Defined Colors
Target Applications	Suitable for Buses, Trucks, or Large Metal Parts	Energy Input Types	Gas, Electricity, or Water Heating Supported

Product Description

The CoatTech Spray Booth‌ combines industrial-grade energy efficiency with robust construction. Its ‌19.5kW synergistic heating system‌ (380V/3Phase) with optional waste heat recovery slashes energy costs, while the ‌6,850mm × 3,850mm × 2,600mm sealed workspace‌ ensures flawless finishes. Built with ‌fire-resistant insulation and galvanized steel‌, this system delivers dust-free, airtight thermal control for professional fleet refinishing.
